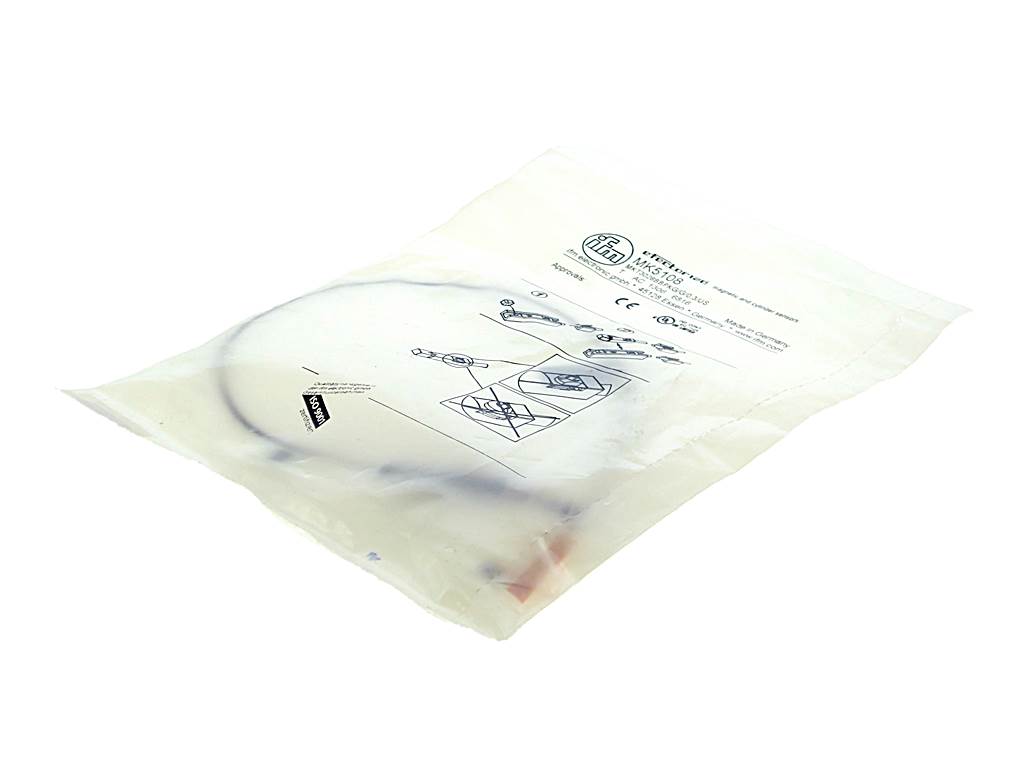

IFM MK5108

IFM MK5023

MAGNETIC SENSORS, CYLINDER SENSORS, CYLINDER SENSOR, METAL HOUSING FOR PNEUMATIC CYLINDERS, 3-WIRE, DC PNP, OPERATING VOLTAGE: 10...30 V DC, CURRENT CONSUMPTION: 18 MA, NORMALLY OPEN, CONNECTOR, M12 CONNECTOR, ELECTROMAGNETIC-FIELD IMMUNE, HOUSING MATERIAL: DIECAST ZINC

IFM MK5106

CYLINDER SENSOR WITH GMR CELL, PLASTIC HOUSING FOR T-SLOT CYLINDERS, DC PNP, CABLE WITH CONNECTOR, MAGNETIC SENSITIVITY 2.8, TRAVEL SPEED > 10 OPERATING VOLTAGE: 10...30 V DC ELECTRICAL DESIGN: DC PNP OUTPUT FUNCTION: NORMALLY OPEN CURRENT RATING: 200 MA MOUNTING: FLUSH MOUNTABLE SWITCHING FREQUENCY: 10000 HZ CONNECTION: PUR CABLE / 0.3 M HOUSING MATERIALS: HOUSING: PA (POLYAMIDE); FASTENING CLAMP: STAINLESS STEEL AMBIENT TEMPERATURE: -25...85 °C PROTECTION: IP 65 / IP 67 OUTPUT STATUS INDICATION: LED YELLOW ACCESSORIES (TO BE ORDERED SEPARATELY): SOCKET, MOUNTING ACCESSORIES BRAND: IFM ELECTRONIC GMBH OR EQUIVALEN

IFM MK5107

CYLINDER SENSOR WITH GMR CELL; 25 X 5 X 6.5 MM; RESPONSE SENSITIVITY 2.8 MT; REVERSE POLARITY PROTECTION YES; SHORT-CIRCUIT PROTECTION YES; OVERLOAD PROTECTION YES; NORMALLY OPEN; DC; PNP; 0.3 M PUR-CABLE; M12 CONNECTOR; IP 65; IP 67; 3-WIRE; SWITCHING FREQUENCY 10000 HZ

IFM MK5329

CYLINDER SENSOR WITH AMR CELL; 17.5 X 2.8 X 7.7 MM; 2 MT; NORMALLY OPEN; DC PNP; 2 M PUR-CABLE; IP 65; IP 67; 3-WIRE; SWITCHING FREQUENCY 5000 HZ

IFM N95001

INDUCTIVE SENSOR, 40 X 26 X 60 MM, SENSING RANGE 4 MM NON-FLUSH MOUNTABLE, 2 X NORMALLY CLOSED, DC NAMUR, M12 / RD24 CONNECTOR, IP 67, 3-WIRE, AMBIENT TEMPERATURE -20...70 °C, SWITCHING FREQUENCY 250 HZ

IFM NF5008

EFECTOR100 IFA2004-N/6M/1D/1G INDUCTIVE SENSOR, METAL THREAD, M12 X 1, CONNECTION TO CERTIFIED INTRINSICALLY SAFE CIRCUITS WITH THE MAX. VALUES U = 15 V / I = 50 MA / P = 120 MW, ATEX APPROVAL, GROUP II, CATEGORY 1D, GROUP II, CATEGORY 1G/2G, CABLE, SENSING RANGE 4 MM [NF]
