Terminals

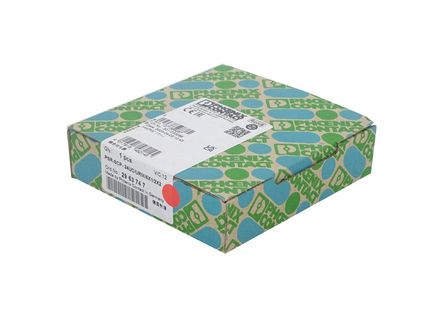

PSR-SCP- 24UC/URM/5X1/2X2; RELAY; SAFE COUPLING RELAY WITH FORCE-GUIDED CONTACTS, 5 N/O CONTACTS, 2 N/C CONTACTS, 1-CHANNEL, PLUG-IN SCREW TERMINAL BLOCK, WIDTH: 22.5 MM; PACKING UNIT: 1

UK 5-HESI N; TERMINAL STRIPS; FUSE MODULAR TERMINAL BLOCK, FUSE TYPE: GLASS / CERAMICS / ..., FUSE TYPE: G / 5 X 20, NOM. VOLTAGE: 500 V, NOMINAL CURRENT: 6.3 A, NUMBER OF POSITIONS: 1, CONNECTION METHOD: SCREW CONNECTION, RATED CROSS SECTION: 1.5 MM², CROSS SECTION:  0.2 MM²- 6 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, NS 32, COLOR: BLACK; PACKING UNIT: 50

UK 6-FSI/C-LED12; TERMINAL STRIPS; FLAT-TYPE FUSE TERMINAL BLOCK, CROSS SECTION: 0.2 - 6 MM², AWG: 26 - 8, WIDTH: 8.2 MM, COLOR: BLACK, WITH LIGHT INDICATOR, VOLTAGE LIGHT INDICATOR: 12 V DC, CURRENT LIGHT INDICATOR: 2 MA; PACKING UNIT: 50

ST 1,5; TERMINAL STRIPS; FEED-THROUGH TERMINAL BLOCK, NOM. VOLTAGE: 500 V, NOMINAL CURRENT: 17.5 A, NUMBER OF CONNECTIONS: 2, CONNECTION METHOD: SPRING-CAGE CONNECTION, 1 LEVEL, RATED CROSS SECTION: 1.5 MM², CROSS SECTION: 0.08 MM² - 1.5 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GRAY; PACKING UNIT: 50

ST 2,5-PE; TERMINAL STRIPS; SPRING CAGE GROUND TERMINAL BLOCK, NUMBER OF CONNECTIONS: 2, CONNECTION METHOD: SPRING-CAGE CONNECTION, 1 LEVEL, CROSS SECTION: 0.08 MM² - 4 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GREEN-YELLOW; PACKING UNIT (PU): 50

ST 2,5-TWIN-PE; TERMINAL STRIPS; GROUND MODULAR TERMINAL BLOCK, NUMBER OF CONNECTIONS: 3, CONNECTION METHOD: SPRING-CAGE CONNECTION, 1 LEVEL, CROSS SECTION: 0.08 MM² - 4 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GREEN-YELLOW; PACKING UNIT: 50

ST 1,5-PE; TERMINAL STRIPS; SPRING CAGE GROUND TERMINAL BLOCK, NUMBER OF CONNECTIONS: 2, CONNECTION METHOD: SPRING-CAGE CONNECTION, 1 LEVEL, CROSS SECTION: 0.08 MM² - 1.5 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GREEN-YELLOW; PACKING UNIT: 50

P-CO 1N4007/L-R; TERMINAL STRIPS; COMPONENT CONNECTOR, WITH DIODE1N4007, LENGTH: 24.2 MM, WIDTH: 5.2 MM, HEIGHT: 33.3 MM, NUMBER OF POSITIONS: 1, COLOR: GRAY; PACKING UNIT: 10

SP 2,5/ 1-R GNYE; TERMINAL STRIPS; PLUG, NOM. VOLTAGE: 500 V, NOMINAL CURRENT: 24 A, NUMBER OF POSITIONS: 1, CONNECTION METHOD: SPRING-CAGE CONNECTION, RATED CROSS SECTION: 2.5 MM², CROSS SECTION: 0.08 MM²- 4 MM², COLOR: GREEN-YELLOW; PACKING UNIT: 50

UT 2,5; TERMINAL STRIPS; FEED-THROUGH TERMINAL BLOCK, NOM. VOLTAGE: 1000 V, NOMINAL CURRENT: 24 A, CONNECTION METHOD: SCREW CONNECTION, RATED CROSS SECTION: 2.5 MM², CROSS SECTION: 0.14 MM² - 4 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GRAY; PACKING UNIT: 50

UT 4; TERMINAL STRIPS; FEED-THROUGH TERMINAL BLOCK, NOM. VOLTAGE: 1000 V, NOMINAL CURRENT: 32 A, CONNECTION METHOD: SCREW CONNECTION, RATED CROSS SECTION: 4 MM², CROSS SECTION: 0.14 MM² - 6 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GRAY; PACKING UNIT: 50

UT 16 BU; TERMINAL STRIPS; FEED-THROUGH TERMINAL BLOCK, NOM. VOLTAGE: 1000 V, NOMINAL CURRENT: 76 A, CONNECTION METHOD: SCREW CONNECTION, RATED CROSS SECTION: 16 MM², CROSS SECTION: 1.5 MM² - 25 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: BLUE; PACKING UNIT (PU): 50

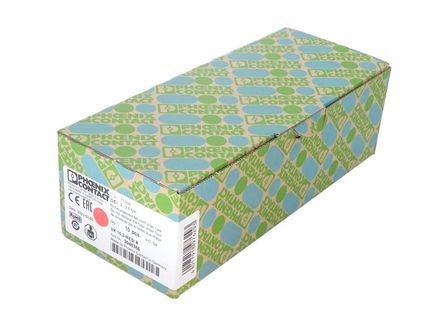

UK 10,3-HESI N; TERMINAL STRIPS; FUSE MODULAR TERMINAL BLOCK, FUSE TYPE: CERAMIC, FUSE TYPE: 10:3 X 38 MM, NOM. VOLTAGE: 690 V, NOMINAL CURRENT: 32 A, CONNECTION METHOD: SCREW CONNECTION, RATED CROSS SECTION: 16 MM², CROSS SECTION:  1.5 MM²- 25 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: BLACK; PACKING UNIT: 10

QTTCB 1,5-PE; TERMINAL STRIPS; PROTECTIVE CONDUCTOR DOUBLE-LEVEL TERMINAL BLOCK, NUMBER OF CONNECTIONS: 4, CONNECTION METHOD: QUICK CONNECTION, 1ST AND 2ND LEVEL, CROSS SECTION: 0.25 MM² - 1.5 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GREEN-YELLOW; PACKING UNIT: 50

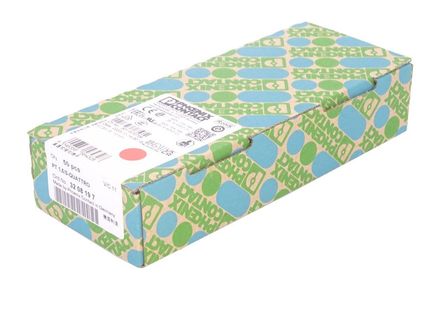

PT 1,5/S-QUATTRO; TERMINAL STRIPS; FEED-THROUGH TERMINAL BLOCK, NOM. VOLTAGE: 500 V, NOMINAL CURRENT: 17.5 A, CONNECTION METHOD: PUSH-IN CONNECTION, 1 LEVEL, RATED CROSS SECTION: 1.5 MM², CROSS SECTION: 0.14 MM² - 1.5 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GRAY; PACKING UNIT (PU): 50

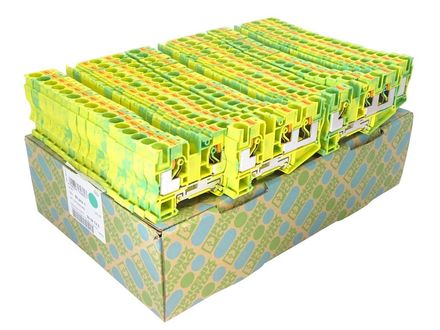

PT 10-TWIN-PE; TERMINAL STRIPS; GROUND MODULAR TERMINAL BLOCK, NUMBER OF CONNECTIONS: 3, CONNECTION METHOD: PUSH-IN CONNECTION, 1 LEVEL, RATED CROSS SECTION: 10 MM², CROSS SECTION: 0.5 MM² - 16 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: GREEN-YELLOW; PACKING UNIT: 50

PT 4-FSI/F-LED 12; TERMINAL STRIPS; FUSE MODULAR TERMINAL BLOCK, FUSE TYPE: FLAT, FUSE TYPE: TYPE F (MINIATURE), NOM. VOLTAGE: 12 V, NOMINAL CURRENT: 10 A, CONNECTION METHOD: PUSH-IN CONNECTION, RATED CROSS SECTION: 4 MM², CROSS SECTION: 0.2 MM²- 6 MM², MOUNTING TYPE: NS 35/7,5, NS 35/15, COLOR: BLACK; PACKING UNIT: 50

PT 2,5-TWIN-MT; TERMINAL STRIPS; KNIFE-DISCONNECT TERMINAL BLOCK, NOM. VOLTAGE: 400 V, NOMINAL CURRENT: 20 A, CONNECTION METHOD: PUSH-IN CONNECTION, RATED CROSS SECTION: 2.5 MM², CROSS SECTION: 0.14 MM² - 4 MM², MOUNTING: NS 35/7,5, NS 35/15, COLOR: GRAY; PACKING UNIT: 50

PT 2,5-TWIN-MT OG; TERMINAL STRIPS; KNIFE DISCONNECT TERMINAL BLOCK, NOM. VOLTAGE: 400 V, NOMINAL CURRENT: 20 A, CONNECTION METHOD: PUSH-IN CONNECTION, RATED CROSS SECTION: 2.5 MM², CROSS SECTION: 0.14 MM² - 4 MM², MOUNTING: NS 35/7,5, NS 35/15, COLOR: ORANGE; PACKING UNIT: 50

PT 2,5-TWIN-TG; TERMINAL STRIPS; DISCONNECT TERMINAL BLOCK, THE MAX. LOAD CURRENT MUST NOT BE EXCEEDED BY THE TOTAL CURRENT OF ALL CONNECTED CONDUCTORS.<BR />CURRENT AND VOLTAGE ARE DETERMINED BY THE PLUG USED., NOM. VOLTAGE: 400 V, NOMINAL CURRENT: 20 A, 1 LEVEL, CONNECTION METHOD: PUSH-IN CONNECTION, RATED CROSS SECTION: 2.5 MM², CROSS SECTION: 0.14 MM² - 4 MM², MOUNTING: NS 35/7,5, NS 35/15, COLOR: GRAY; PACKING UNIT: 50
