Analoge Peripherie

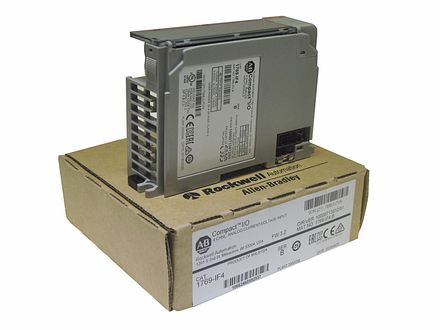

INPUT MODULE 4POINT ANALOG CUR/VOLT COMPACT LOGIX

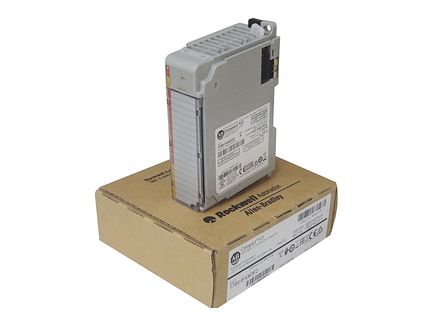

I/O MODULE 8B HIGHSPEED 4IN/2OUT ANALOG COMPACT LOGIX • VOLTAGE: 0…10V DC, CURRENT: 0…20 MA • 4 INPUTS, 2 OUTPUTS

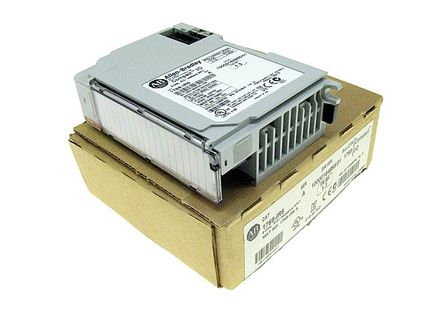

ANALOG INPUT MODULE 6 POINT RTD / RESISTANCE

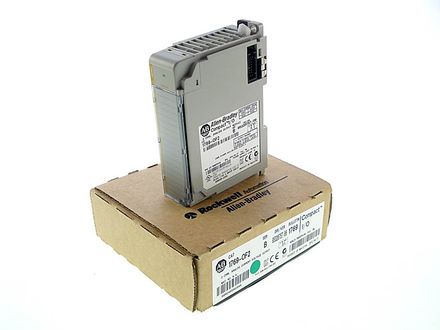

OUTPUT MODULE 2POINT ANALOG CUR/VOLT COMPACT LOGIX

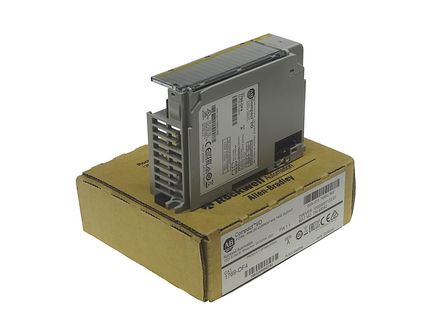

COMPACTLOGIX 4 POINT A/O MODULE

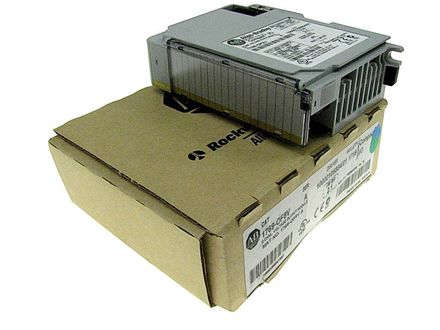

NUMBER OF OUTPUTS: 8 SINGLE-ENDED; ANALOG NORMAL OPERATING RANGES: ± 10V DC, 0 TO 10V DC, 0 TO 5V DC, 1 TO 5V DC; FULL SCALE ANALOG RANGES: ± 10.5V DC, -0.5 TO 10.5V DC, -0.5 TO 5.25V DC, 0.5 TO 5.25V DC; DIGITAL RESOLUTION ACROSS FULL RANGE: 16 BITS PLUS SIGN (BIPOLAR).

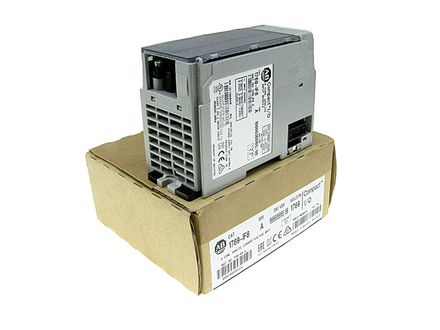

COMPACTLOGIX 8 CHANNEL ANALOG VOLTAGE/CURRENT INPUT MODULE
